Automatic Encryption¶

On this page

How Encrypted Writes and Reads Work
- Encrypted Writes
- Encrypted Reads
Enabling Automatic
Server-Side Field Level Encryption Enforcement

MongoDB supports automatically encrypting fields in read and write operations when using . You can perform automatic encryption using mongosh and official MongoDB drivers which are compatible with version 4.2 and later. For a complete list of official compatible drivers with support for , see Driver Compatibility Compatibility.

How Encrypted Writes and Reads Work¶

The following diagrams show how the client application and driver write and read field-level encrypted data.

Encrypted Writes¶

For write operations, the driver encrypts field values prior to writing to the MongoDB database.

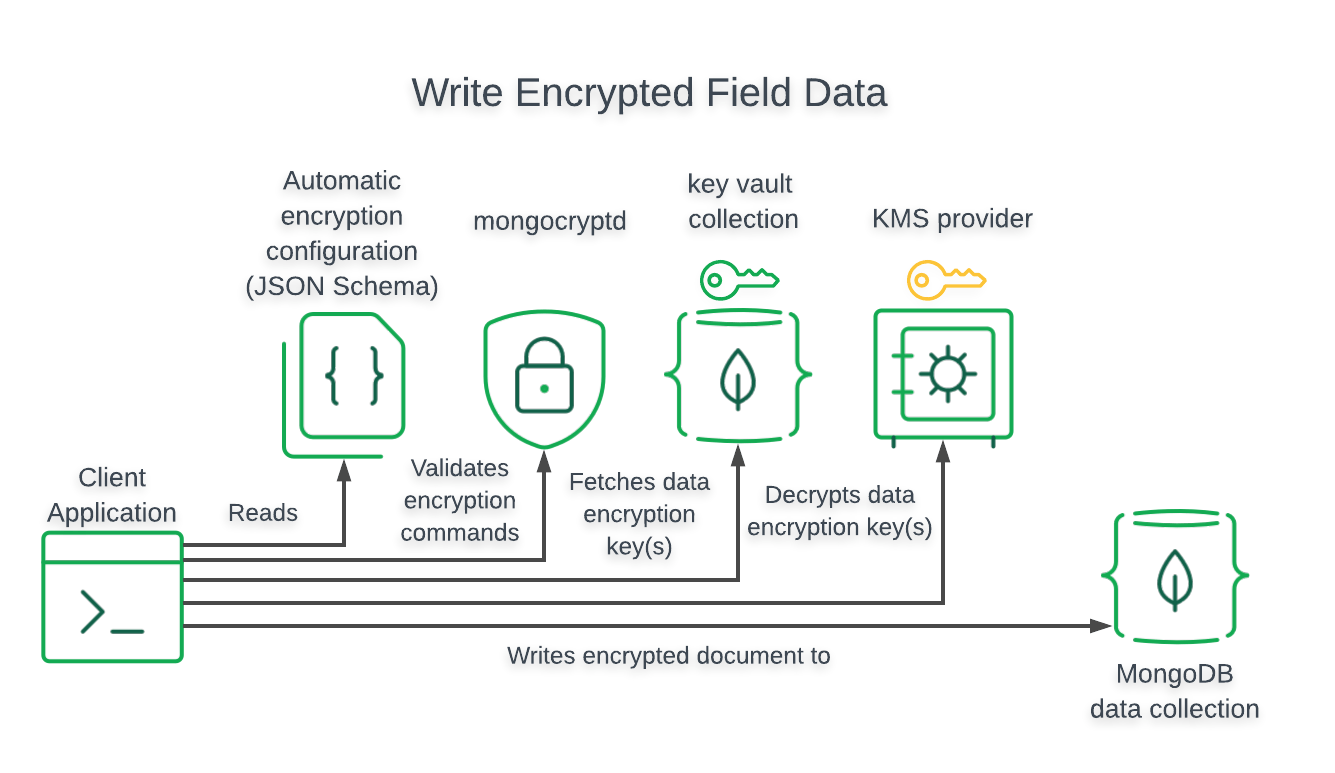

The following diagram shows the steps taken by the client application and driver to perform a write of field-level encrypted data:

Diagram that shows the data flow for a write of field-level encrypted data

Encrypted Reads¶

For read operations, the driver encrypts field values in the query prior to issuing the read operation.

For read operations that return encrypted fields, the driver automatically decrypts the encrypted values only if the driver was configured with access to the Customer Master Key (CMK) and Data Encryption Keys (DEK) used to encrypt those values.

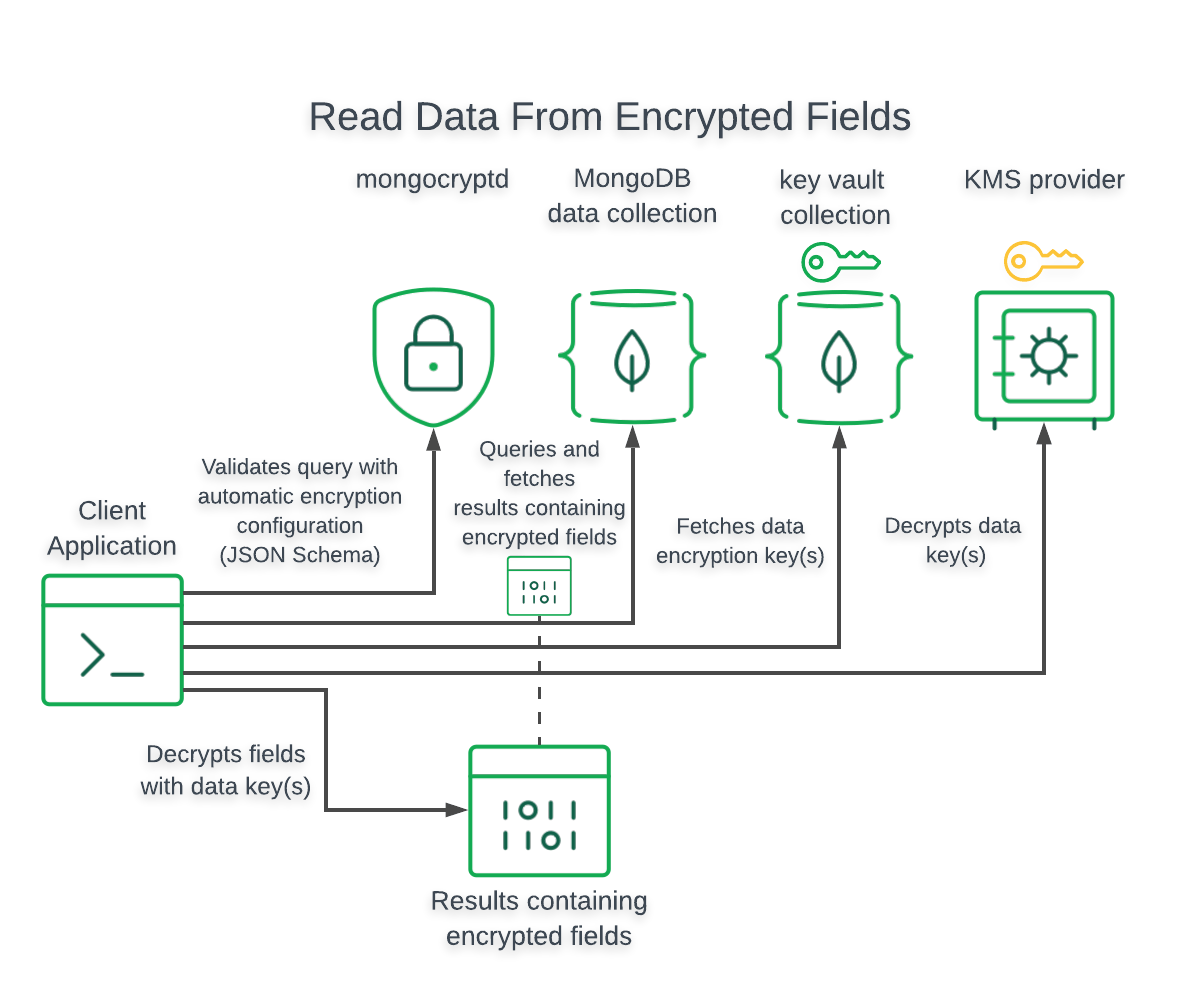

The following diagram shows the steps taken by the client application and driver to query and decrypt field-level encrypted data:

Diagram that shows the data flow for querying and reading field-level encrypted data

Enabling Automatic¶

To enable automatic encryption, specify automatic encryption settings in your client’s MongoClient instance.

The following code snippets show how to create a client with automatic encryption enabled in mongosh and MongoDB drivers:

copy

var autoEncryptionOpts =
{
   "keyVaultNamespace" : "<database>.<collection>",
   "kmsProviders" : { ... },
   "schemaMap" : { ... }
}

cluster = Mongo(
  "<Your Connection String>",
  autoEncryptionOpts
);

Tip

Environment Variables

If possible, consider defining the credentials provided in kmsProviders as environment variables, and then passing them to mongosh using the --eval option. This minimizes the chances of credentials leaking into logs.

copy

fle_opts = AutoEncryptionOpts(
  kms_providers,
  key_vault_namespace,
  schema_map=patient_schema,
  **extra_options
)
client = MongoClient(connection_string, auto_encryption_opts=fle_opts)

copy

MongoClientSettings clientSettings = MongoClientSettings.builder()
    .applyConnectionString(new ConnectionString("mongodb://localhost:27017"))
    .autoEncryptionSettings(AutoEncryptionSettings.builder()
        .keyVaultNamespace(keyVaultNamespace)
        .kmsProviders(kmsProviders)
        .schemaMap(schemaMap)
        .extraOptions(extraOptions)
        .build())
    .build();

MongoClient mongoClient = MongoClients.create(clientSettings);

copy

const secureClient = new MongoClient(connectionString, {
  useNewUrlParser: true,
  useUnifiedTopology: true,
  monitorCommands: true,
  autoEncryption: {
    keyVaultNamespace,
    kmsProviders,
    schemaMap: patientSchema,
    extraOptions: extraOptions,
  },
});

copy

var clientSettings = MongoClientSettings.FromConnectionString(_connectionString);
var autoEncryptionOptions = new AutoEncryptionOptions(
    keyVaultNamespace: keyVaultNamespace,
    kmsProviders: kmsProviders,
    schemaMap: schemaMap,
    extraOptions: extraOptions);
clientSettings.AutoEncryptionOptions = autoEncryptionOptions;
var client = new MongoClient(clientSettings);

copy

autoEncryptionOpts := options.AutoEncryption().
	SetKmsProviders(provider.Credentials()).
	SetKeyVaultNamespace(keyVaultNamespace).
	SetSchemaMap(schemaMap).
	SetExtraOptions(extraOptions)
client, err := mongo.Connect(context.TODO(), options.Client().ApplyURI(uri).SetAutoEncryptionOptions(autoEncryptionOpts))

For more information on CSFLE-specific MongoClient settings, see -Specific MongoClient Options.

Server-Side Field Level Encryption Enforcement¶

MongoDB supports using schema validation to enforce encryption of specific fields in a collection. Clients performing automatic have specific behavior depending on the database connection configuration:

If the connection :ref:` <csfle-enc-options-example>` schemaMap object contains a key for the specified collection, the client uses that object to perform automatic field level encryption and ignores the remote schema. At minimum, the local rules must encrypt those fields that the remote schema marks as requiring encryption.
If the connection :ref:` <csfle-enc-options-example>` schemaMap object does not contain a key for the specified collection, the client downloads the server-side remote schema for the collection and uses it to perform automatic field level encryption.
Important

Behavior Considerations

When ```` does not contain a key for the specified collection:
- The client trusts that the server has a valid schema with respect to automatic field level encryption.
- The client uses the remote schema to perform automatic

  only. The client does not enforce any other

  validation rules specified in the schema.

To learn how to set up server-side enforcement, see Server-Side Schema Enforcement.
